Low-Level Design (LLD), also known as Detailed Design, is the phase in the Software Development Life Cycle (SDLC) where the High-Level Design (HLD) is broken down into more detailed and precise components. LLD provides in-depth details about each module, function, database schema, algorithms, and interface design so that developers can start writing actual code.
1. Purpose of Low-Level Design (LLD)
- Converts HLD into detailed components for implementation.
- Defines class structures, database schemas, and interactions.
- Helps developers understand the exact behavior of the system.
- Ensures code consistency, efficiency, and maintainability.
2. Key Components of Low-Level Design (LLD)

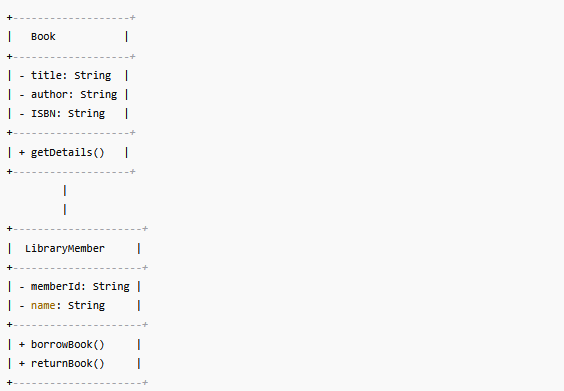

🔹 1. Class Diagrams (Object-Oriented Design)
- Defines how classes and objects interact within the system.
- Shows attributes, methods, and relationships (inheritance, associations, etc.).
📌 Explanation:
- Book Class: Stores book details and provides methods to get book information.
- LibraryMember Class: Represents a user who can borrow or return books.
🔹 2. Sequence Diagrams (Interaction Flow)
- Represents step-by-step interactions between system components.
- Shows how objects communicate over time.

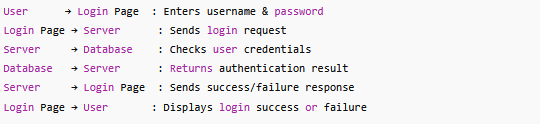

Example: User Login Sequence Diagram
📌 Explanation:
- The user enters credentials.
- The system validates credentials in the database.
- The system grants or denies access based on the response.
🔹 3. Database Schema Design
- Defines table structures, relationships, primary & foreign keys.
- Helps developers interact with the database efficiently.

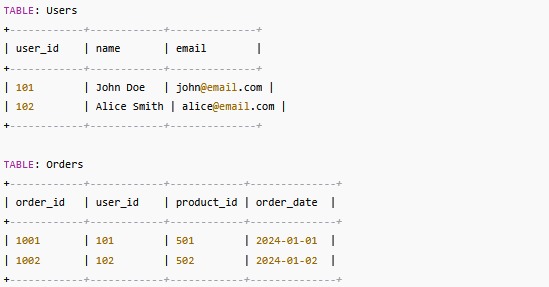

Example: Database Schema for an E-commerce System
📌 Explanation:
- Users Table: Stores user details.
- Orders Table: Tracks purchases linked to users.
🔹 4. Function and API Design
- Defines method signatures, return types, input parameters, and exceptions.
- Helps developers understand how functions interact.

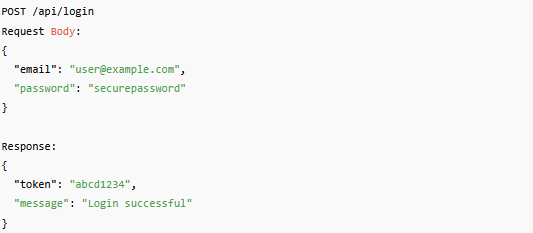

Example: API Design for User Login
📌 Explanation:
- API Endpoint: Handles user authentication.
- Returns a JWT token for authentication upon success.
🔹 5. Algorithm Design (Logic & Flowcharts)
- Defines how computations and decisions are handled in a module.
- Ensures efficient logic and reduces time complexity.

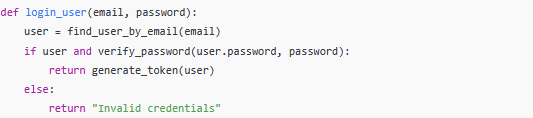

Example: Pseudo code for User Login
📌 Explanation:
- The function checks user credentials and returns a token if valid.
🔹 6. Error Handling & Security Measures
- Defines how exceptions, failures, and security vulnerabilities are handled.
- Ensures robust security practices.
Common Error Handling Strategies
✔ Try-Catch Blocks (for runtime exceptions).
✔ Validation Checks (for user inputs).
✔ Logging & Monitoring (for debugging issues).
✔ Rate Limiting & Authentication (to prevent abuse).
3. Differences Between HLD and LLD
| Feature | High-Level Design (HLD) | Low-Level Design (LLD) |
|---|---|---|
| Focus | System architecture & components | Detailed module & function-level design |
| Granularity | Abstract (big-picture) | Detailed & specific |
| Output | Architecture diagrams, tech stack | Class diagrams, APIs, database design |
| Used By | Architects, Project Managers | Developers, Testers |
| Example | “The system will have authentication” | “Login API will validate email & password” |
4. Advantages of Low-Level Design
✅ Clear Implementation Plan – Helps developers write structured and optimized code.
✅ Reduces Bugs – Detailed design reduces ambiguity, leading to fewer mistakes.
✅ Improves Code Maintainability – Well-designed modules make future modifications easier.
✅ Ensures Security & Performance – Security and optimization strategies can be implemented at the design level.
✅ Enhances Collaboration – Clear documentation makes it easy for teams to work together.
5. Tools Used for LLD
- UML Tools: Microsoft Visio, Lucidchart, Draw.io
- Database Design Tools: MySQL Workbench, PostgreSQL ERD Tools
- Code Documentation: Swagger (for API design), Markdown
- Flowcharting: Figma, Balsamiq, Miro
6. Conclusion
🔹 Low-Level Design (LLD) is a detailed roadmap for developers, ensuring a smooth transition from design to implementation.
🔹 It includes class diagrams, sequence diagrams, API definitions, database schemas, algorithms, and security considerations.
🔹 A well-structured LLD reduces errors, improves maintainability, and ensures system reliability.
